Moving Lights

Martin

MAC Viper XIP

LIGHT SOURCE

• 760 W proprietary LED light engine
• 55 x 20 W white LEDs
• Minimum LED lifetime: >50,000 hours (see specs for further details)

PHOTOMETRIC DATA

• Light Engine Luminous Output: 56,000 lumens
• Fixture Luminous Output: 28,000 lumens
• Peak Luminous Intensity: 2.4 Mcd
• CCT: 5800 K (+/- 250 K)

OPTICS

• 150 mm front Lens
• 1:9 zoom range (5.7° - 51° field angle)
• High resolution projection system

DYNAMIC EFFECTS

• 0 - 100% continuous dimming and strobe effects
• Choice of four dimming curves
• CMY color mixing
• Color temperature control (5,800 - 2,850 K)
• Color wheel with 5 x dichroic filters, including Spectral Enhancement Filter
• Rotating gobo wheel 1 includes 7 interchangeable gobos + open
• Rotating gobo wheel 2 includes 7 interchangeable gobos + open
• Gobo animation wheel, indexing, continuous rotation with variable angle
• 2 x Frost (fade in), Light & Heavy
• 4-facet prism
• Iris
• Zoom
• Focus with auto tracking
• Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
• Pan: 540°
• Tilt: 268°
• P3 videomapping of fixture color and/or intensity (6 segments)
• Pre-programmed effects: Two ranges of pre-programmed FX
• Green Magenta Shift Control
• Virtual CTC Control (2,000 – 12,850K)

COOLING AND NOISE

• Low noise cooling system
• User-selectable output vs. sound level control

CONSTRUCTION

• Height (head straight up): 758 mm (29.8 in.)
• Height (maximum): 776 mm (30.6 in.)
• Weight: 37.0 kg (81.1 lbs.)

CONTROL

• DMX-512 in/out
• Ethercon in/out for P3, Art-Net, sACN
• Built in Ethernet switch with fail-safe bypass

ㆍRated Power

    800W

ㆍChannel

    35CH / 44CH

ㆍSize

    H 759_W 404_D 247

ㆍWeight

    33kg

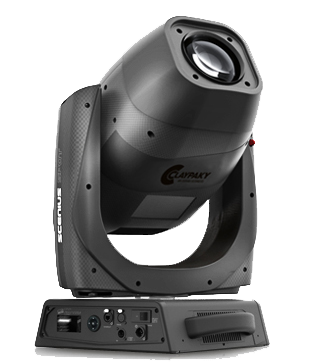

Clay paky

Scenius Spot

ㆍRated Power

    1800W

ㆍChannel

    32CH / 36CH

ㆍSize

    H 760_W 446_D 530

ㆍWeight

    38kg

Martin

Viper Profile

ㆍRated Power

    1200W

ㆍChannel

    26CH / 34CH

ㆍSize

    H 748_W 335_D 472

ㆍWeight

    37.2kg

ROBE

MMX Spot™

ㆍRated Power

    1020W

ㆍChannel

    29CH. 31CH, 38CH, 40CH

ㆍSize

    H 760_W 360_D 410

ㆍWeight

    25.5kg
